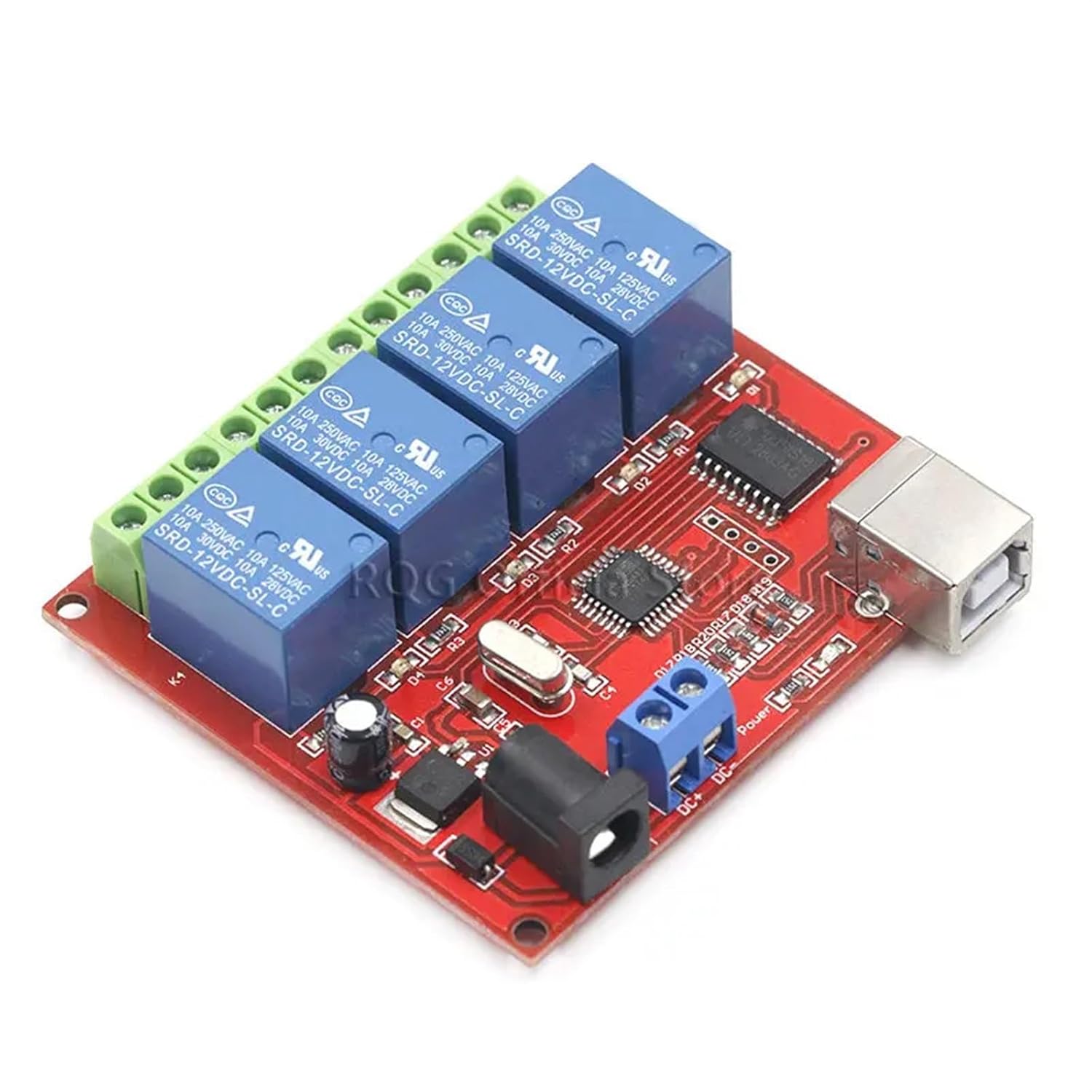

5V 12V 24V 4 Channel USB Relay Control Switch Programmable Computer Control for Smart Home PC Intelligent Controller(12V)
4.0 (44 items)
Limited Time Sale$30.85 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208125603 | Release Date | 2026/03/22 | List Price | $20.57 | Model Number | 208125603 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

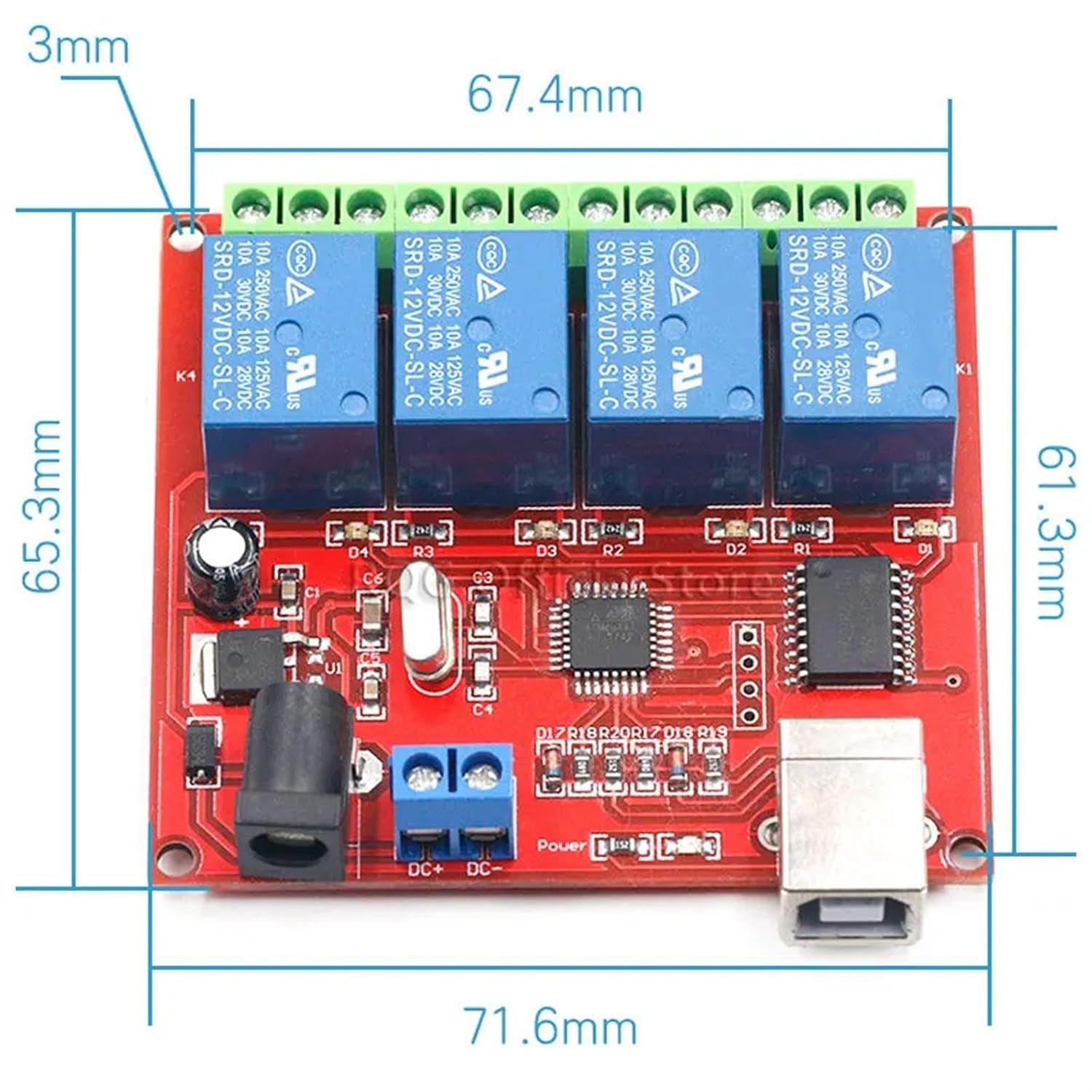

Relay Control ModuleProduct description1.Onboard square USB interface, stable connection2.Use imported high-performance USB control chip3.Using a dedicated relay driver chip ULN2803, the relay work more stable4.Use pine music relay5.Military grade PCB board production6.Board power outlet and terminal, two access power mode convenient and flexible. After connecting the power, even if the computer shut down or USB from the computer pull out, the relay can also maintain the set state.7.PCB size: 71.6mm *65.3mm8.Fixed hole size: 3mm,fixed hole center moment:67.4mm*61.3mmProduct ParameterInput voltage: DC 5V/12V/24VInput current: greater than 300mAWiring method: NC/COM/NOMaximum control AC 250V, 10A AC load and maximum DC30V 10A DC loadInterface description1. Green means the relay is closed , red means open2. After turning on the device, the software automatically obtains the current working status of the relay
- Relay Control Module
| Department | Unisex Adult |
|---|---|
| Manufacturer | MDWXDOFP |
| Item model number | MDWXDOFP |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches; 1.76 ounces |
Relay Control Module
